Ship Equipment
Development of Precision Rock Dumping Pile Fender Vessel Tracking Control Technology

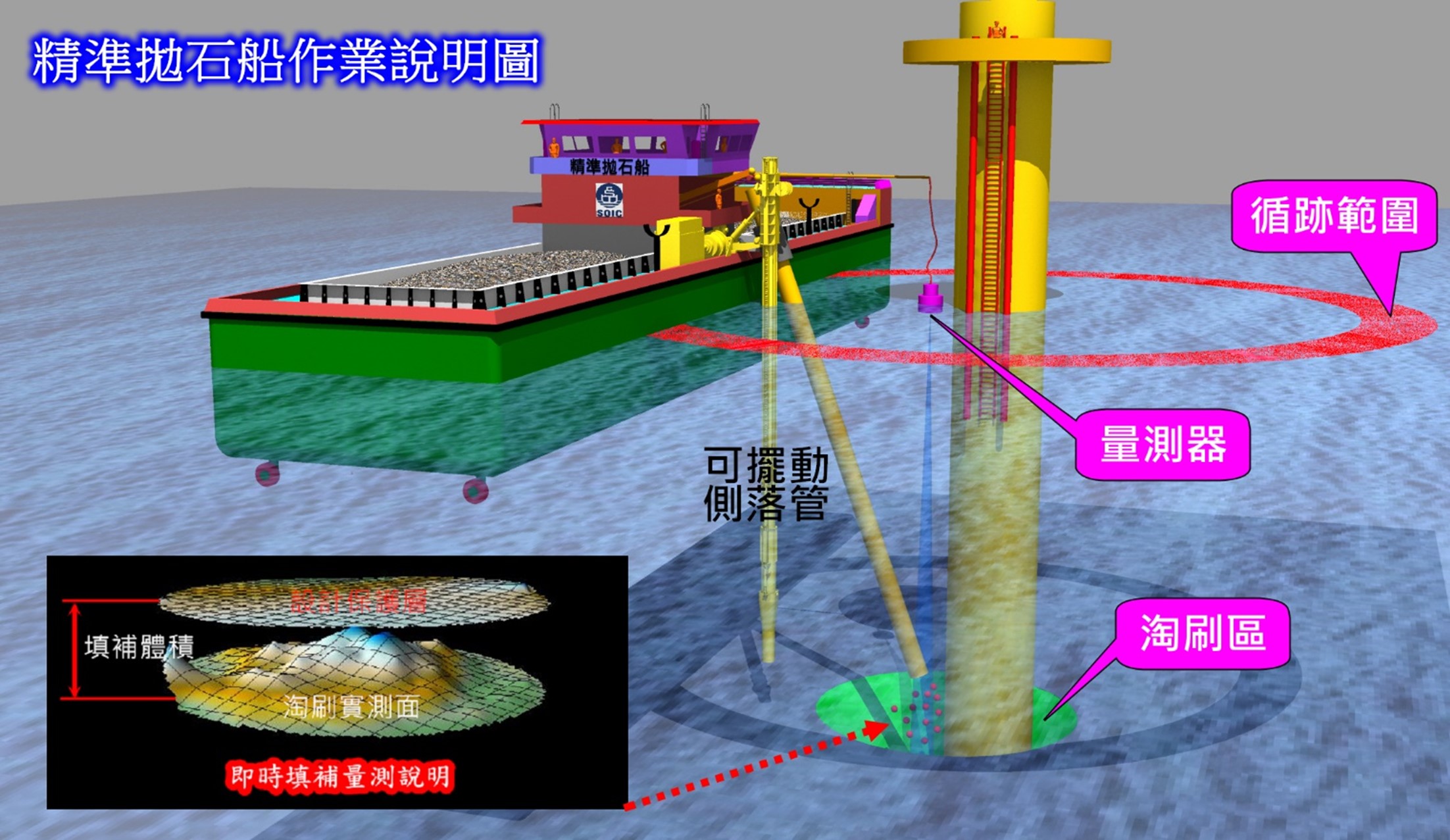

This project develops a Precision Rock Dumping Pile Fender Vessel equipped with a rock material fully automatic loading and unloading system capable of multi-point tracking and positioning control, with active end positioning compensation lateral fallpipe system and instant rock dumping result verification system. It can operate within the water depth of 30 meters, effectively improve the precision and efficiency of rock dumping, to achieve the compound benefits of materials saving, labor saving, time and money savings, and improve the efficiency by more than 10 times compared with the traditional surface gravity scatter type rock dumping operation.
- Rock Material System

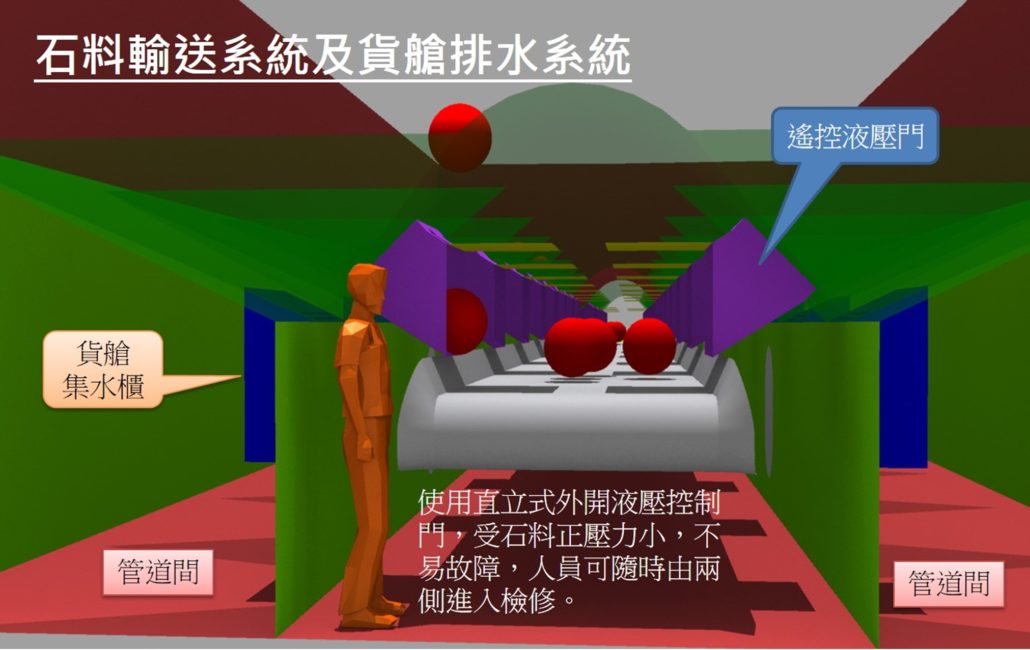

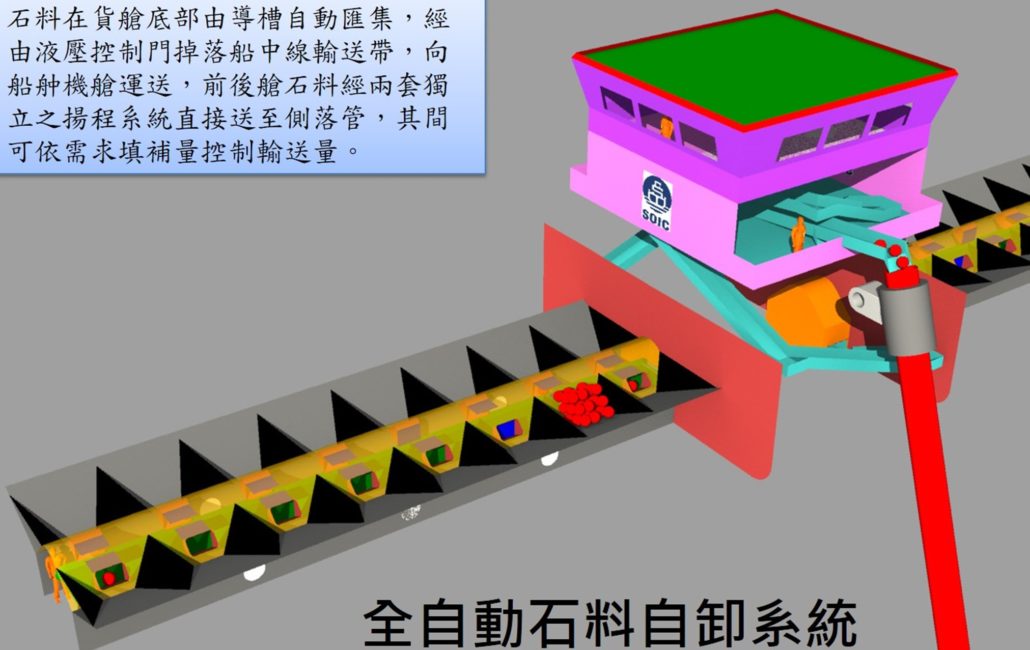

Capable of being conveyed for filling on shore or at sea, 2350 cubic meters of rock cabin is an unmanned self-unloading design, fully automated mechanical transmission, controllable filling during dumping, equipped with flexible operation of double cabins, double materials and double independent conveying system, with about 1000 cubic meters of rock dumping per hour.
- Tracking System

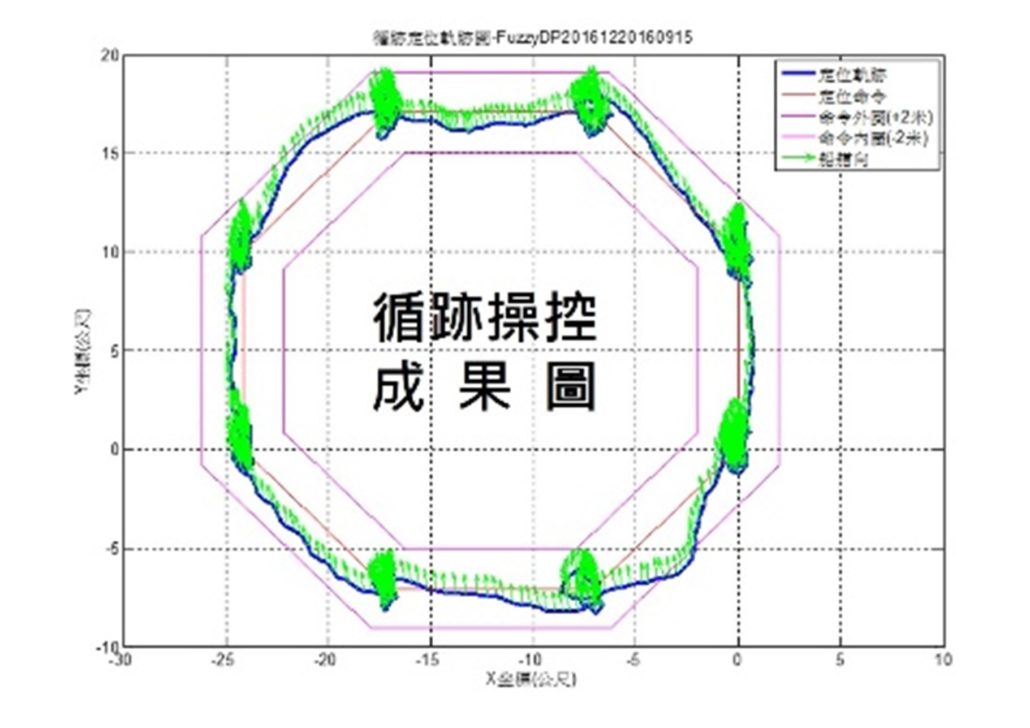

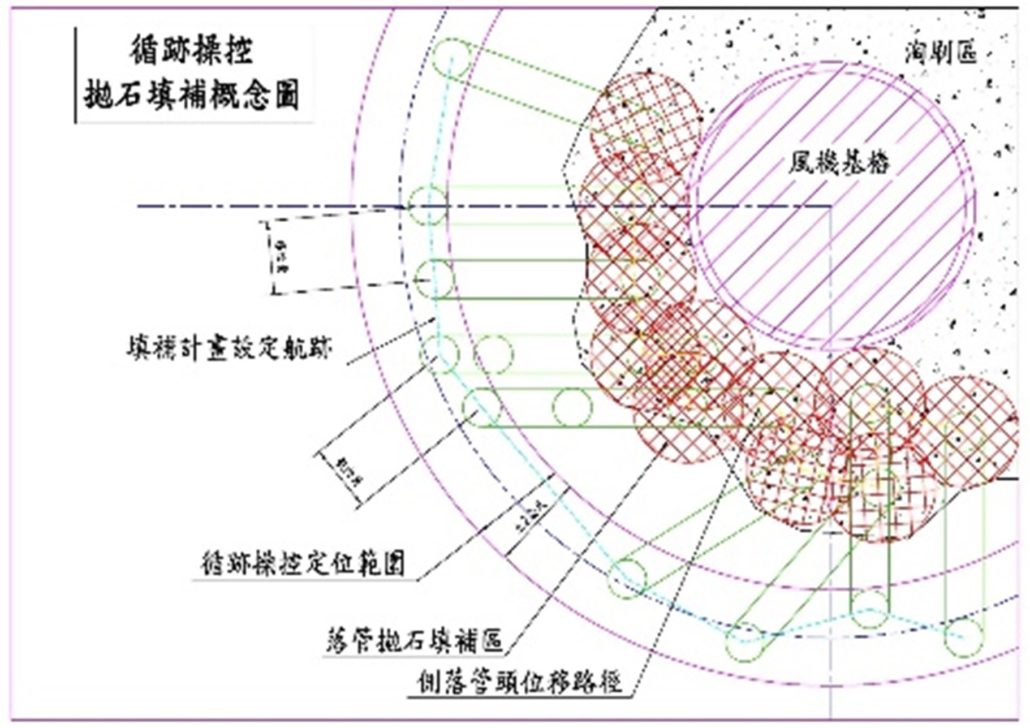

Equipped with the ship dynamic positioning control capability estimation technology, capable of setting multi-point station dumping procedure according to the dumping target, the track positioning accuracy is ±2 meters, the course and speed can be controlled for forward moving, side moving and backward tracking rock dumping operation.
