DESIGN ACHIEVEMENT

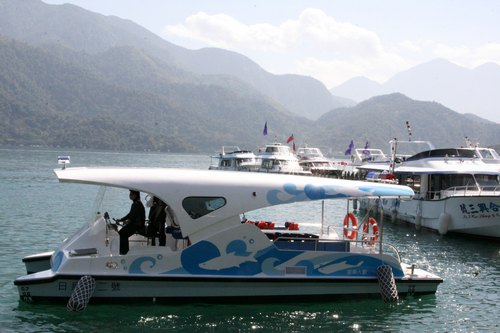

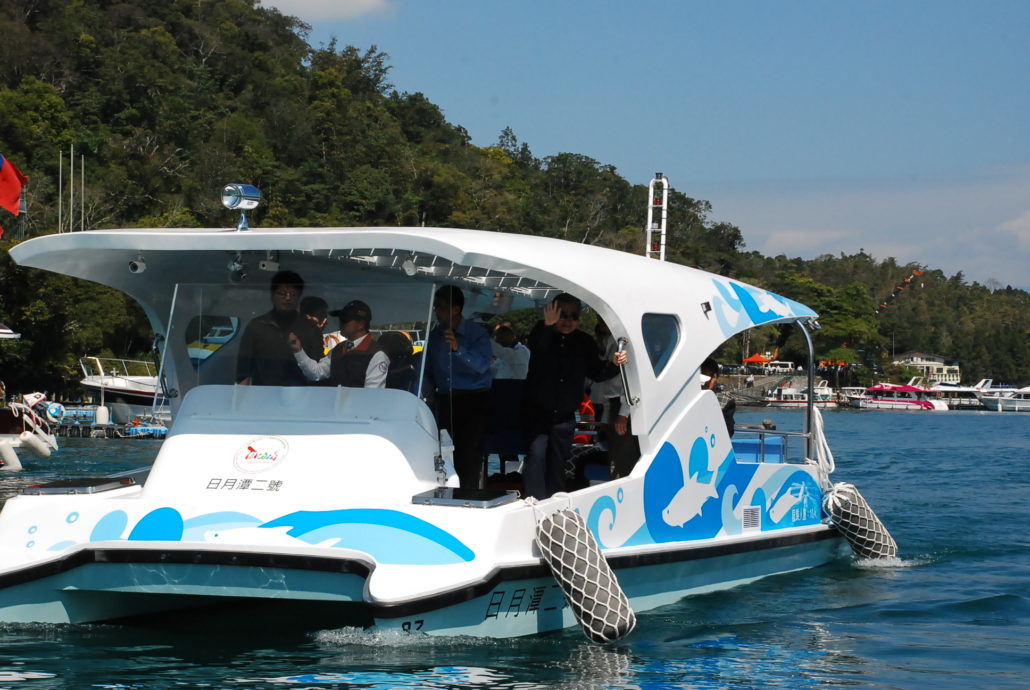

Sun Moon Lake Electric Vessel
Delivery year:2011

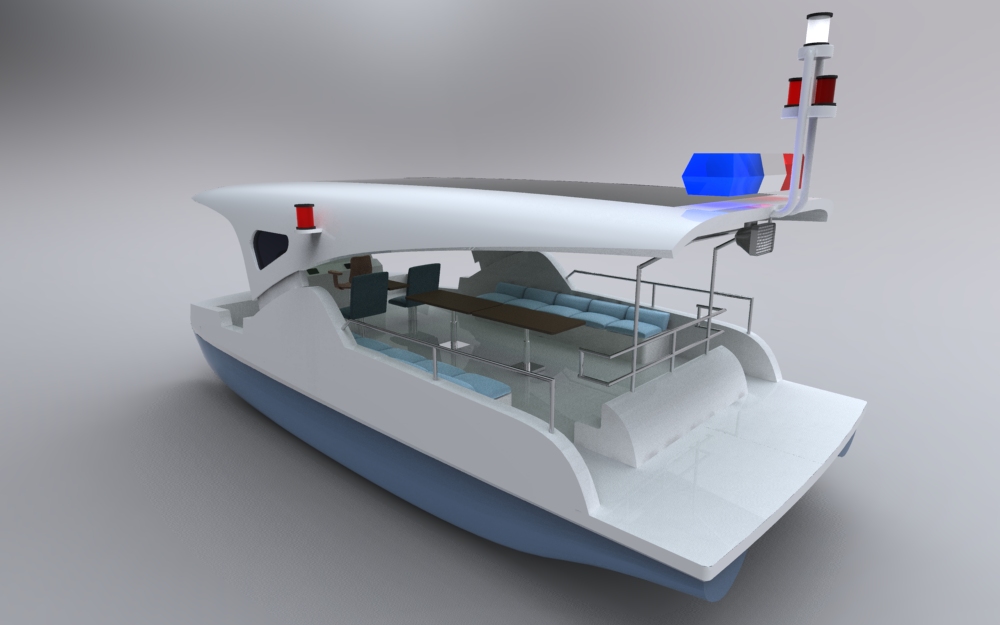

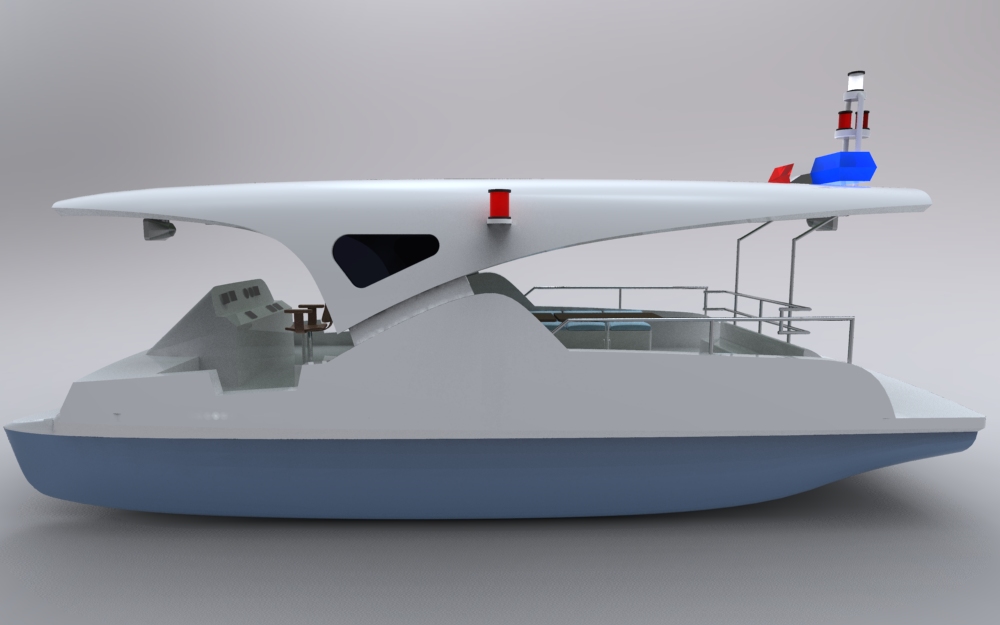

The design concept of this green energy vessel comes from a bird endemic to the Sun Moon Lake – the Pomatorhinus Ruficollis. The bionic design on the vessel’s sides represent the designer’s respect for the local environment and its ecology. The vessel is a 100% electric and does not require fuel oil. Its power source comes from a high-performance lithium phosphate battery, which can provide up to 6 hours of continuous cruising when fully charged.
- The vessel uses two 20kW generators for its main power source. It does not rely on engines, thus it creates no noise or air pollution.
- It is equipped with searchlights, warning lights and an enlarged quarter deck to facilitate search and rescues.

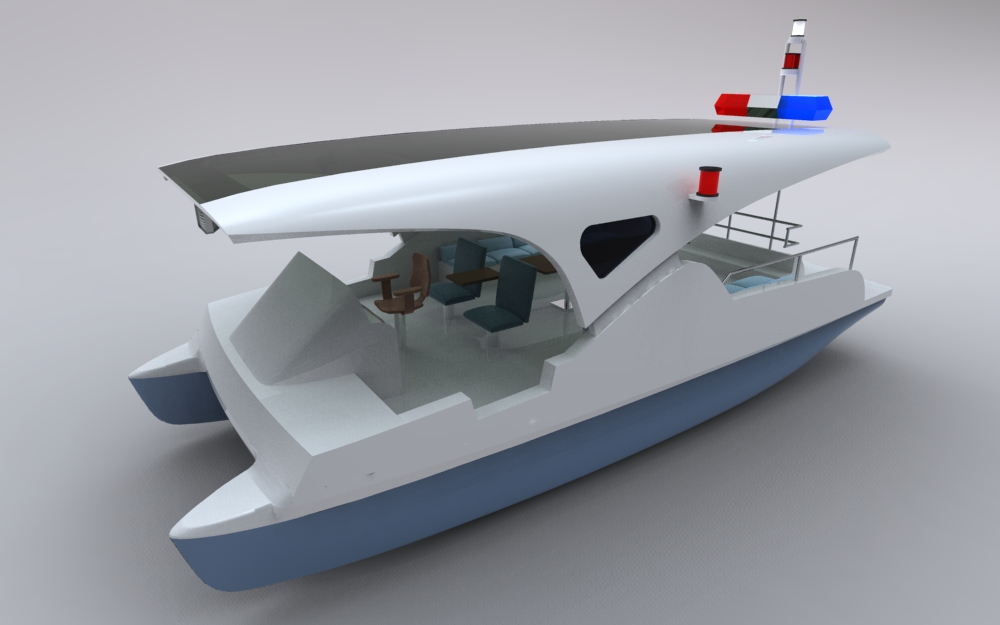

- Designed with catamarans of low resistance.
- Installed with solar panels.
Specifications
Sun Moon Lake Electric Vessel
SHIP NAME | Sun Moon Lake Electric Vessel |
Length | 9.10 m |
Breadth | 3.85 m |
Cruising speed | 6.0 knots |
Maximum speed | 10 knots |
Persons capacity | 12 persons |
